SPECIFICATIONS

Battery Included: No

Brand Name: spotpear

Choice: yes

High-concerned chemical: None

Model Number: RP2350-MINI

Origin: Mainland China

semi_Choice: yes

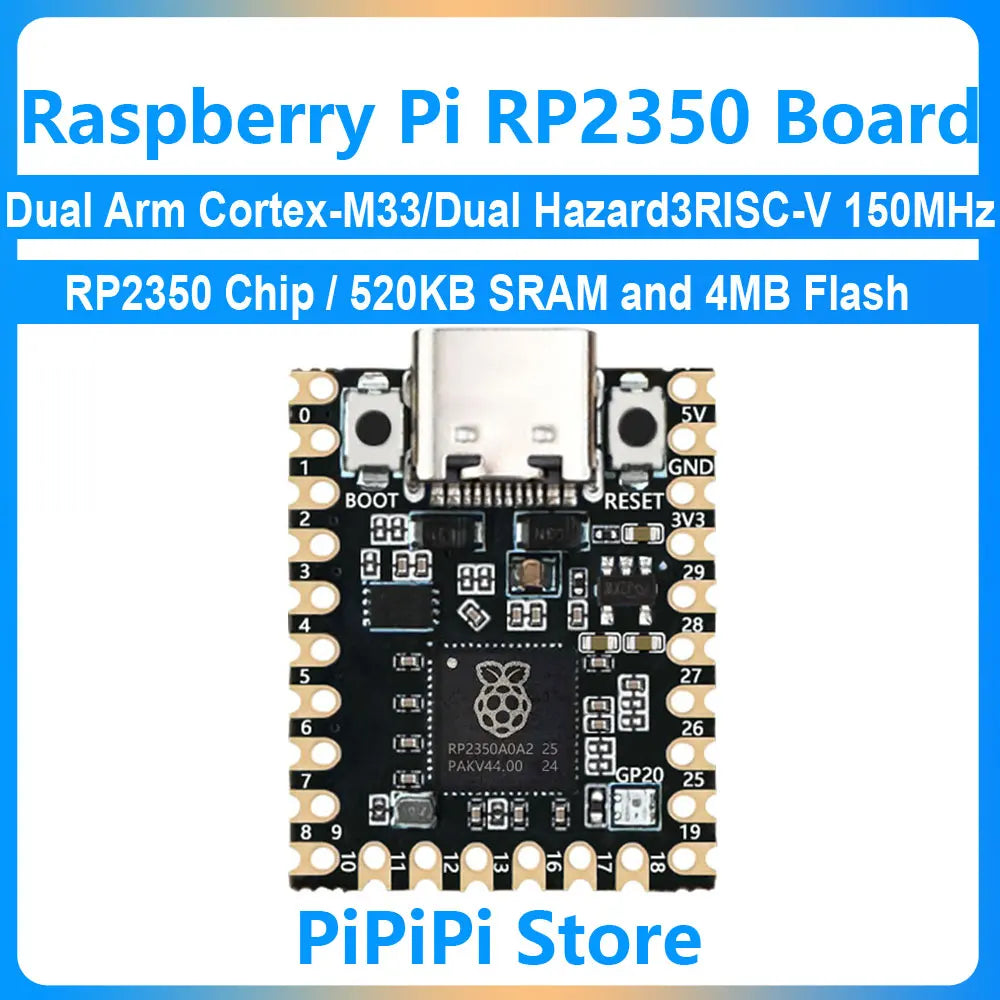

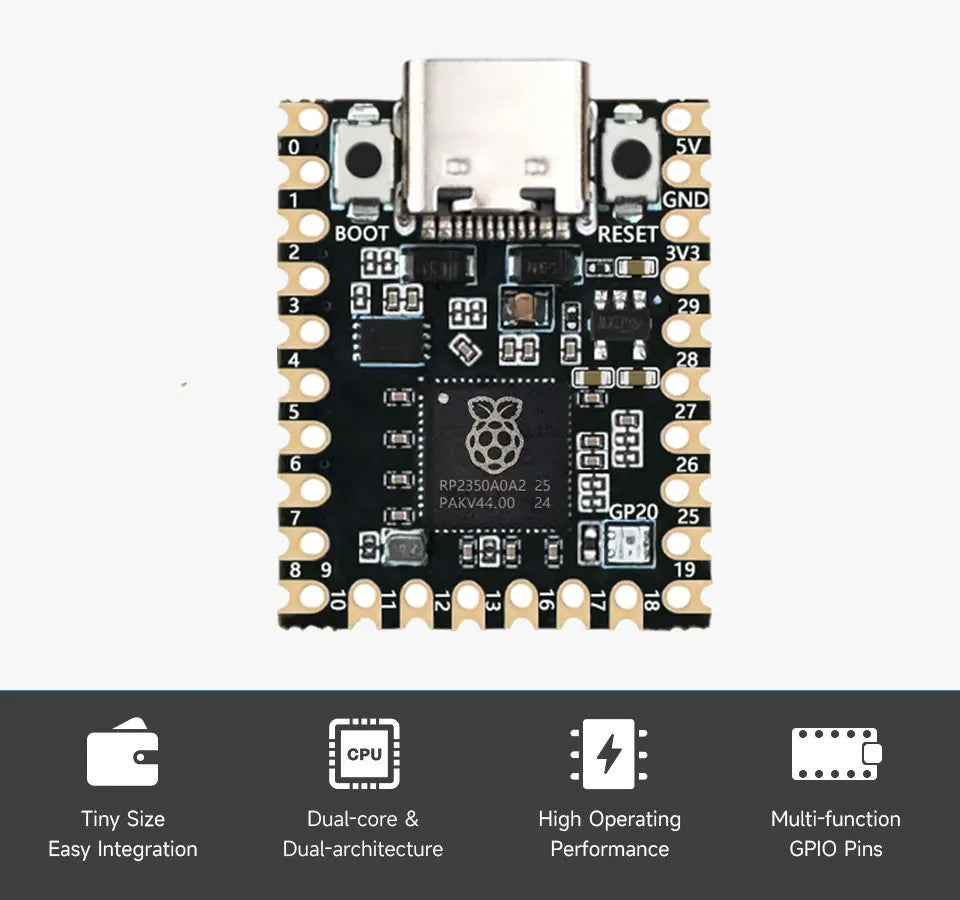

RP2350-Mini Development Board

Based on the Raspberry Pi RP2350A, all unused pins are brought out in a very small board

Using half-hole technology, it can be welded on a custom board

Product Features

• Uses the RP2350A microcontroller chip developed by Raspberry Pi

• Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, running at clock frequencies up to 150MHz

• Built-in 520KB SRAM and 4MB on-chip Flash

• Adopt Type-C interface, keep up with the trend of the times, no need to worry about plugging in the right or wrong direction

• Stamp hole design, can be directly welded and integrated into the base plate designed by the user

• Supports USB1.1 host and device

• Supports low power sleep and hibernation modes

• Drag-and-drop downloading via USB recognized as mass storage

• RP2350A's 29 GPIO pins are brought out (20 can be brought out through pin headers, the rest can only be brought out by soldering)

• 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 24 controllable PWM channels

Version selection

C/C++，MicroPython

Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

Dual-core, dual-architecture processor

Onboard dual-core ARM Cortex-M33 + dual-core Hazard3 RISC-V processors

Running at up to 150 MHz

29 multi-function GPIO pins

Supports configuration pin function, which can be easily and flexibly developed and integrated

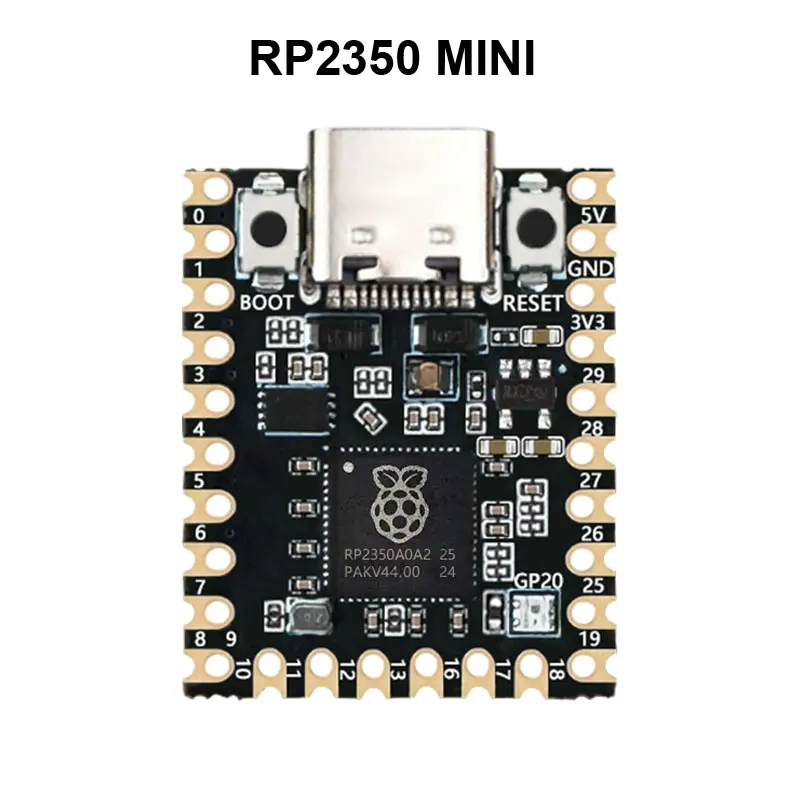

Resource Overview

1. USB Type-C interface

   Can be used to download programs and supports USB1.1 host and slave devices

2. BOOT button

   Press during reset to enter download mode

3. Reset button

4. ME6217C33M5G

   Low voltage drop LDO, maximum current 800MA

5. 4MB NOR-Flash

6. RP2350A

   1. Dual-core and dual-architecture design, up to 150 MHz operating frequency

7. Cool RGB LED

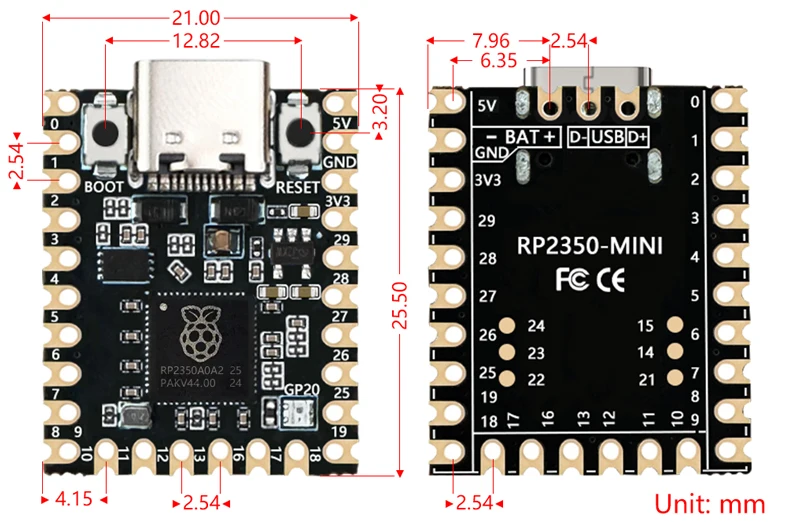

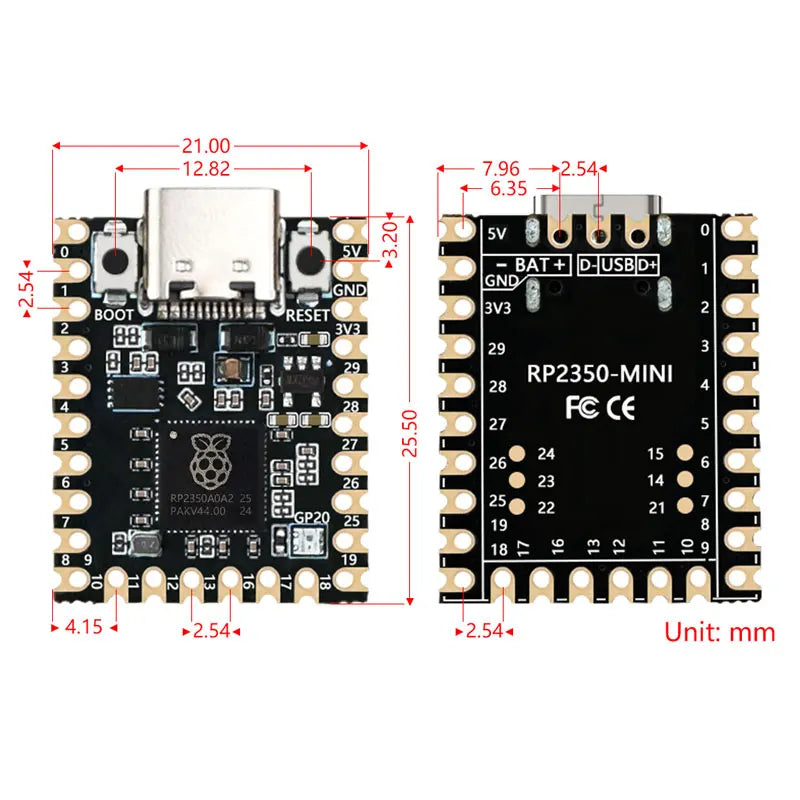

Product size

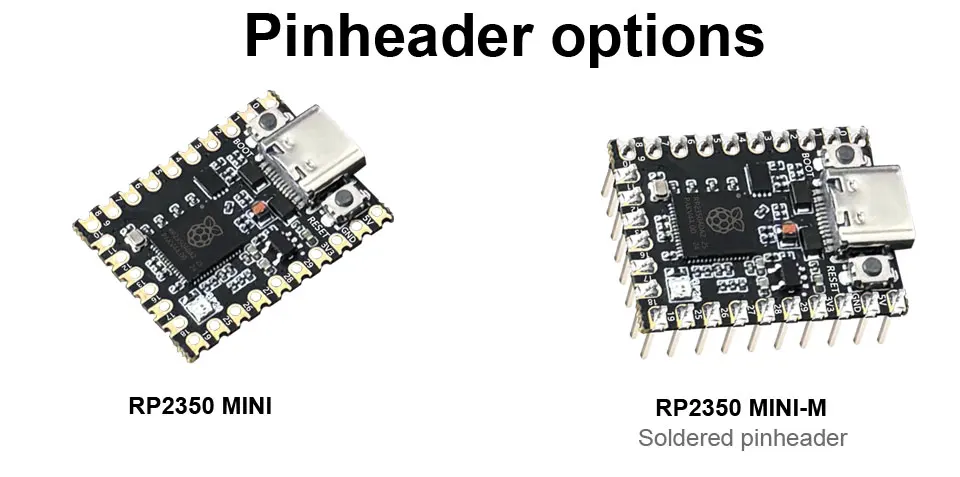

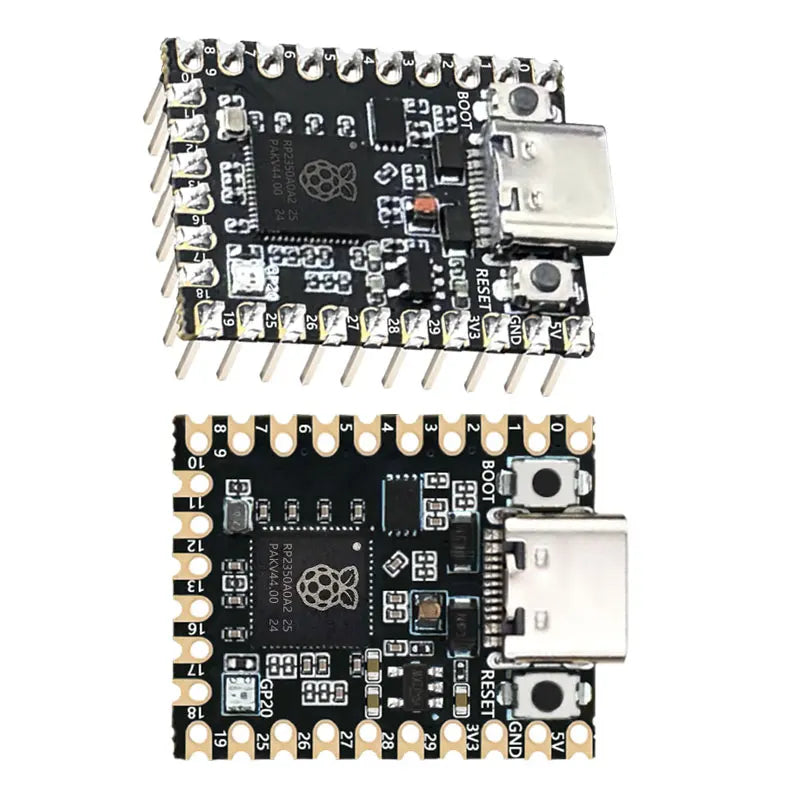

PACKAGE CONTENT

[] RP2350-Mini（Not Soldered）

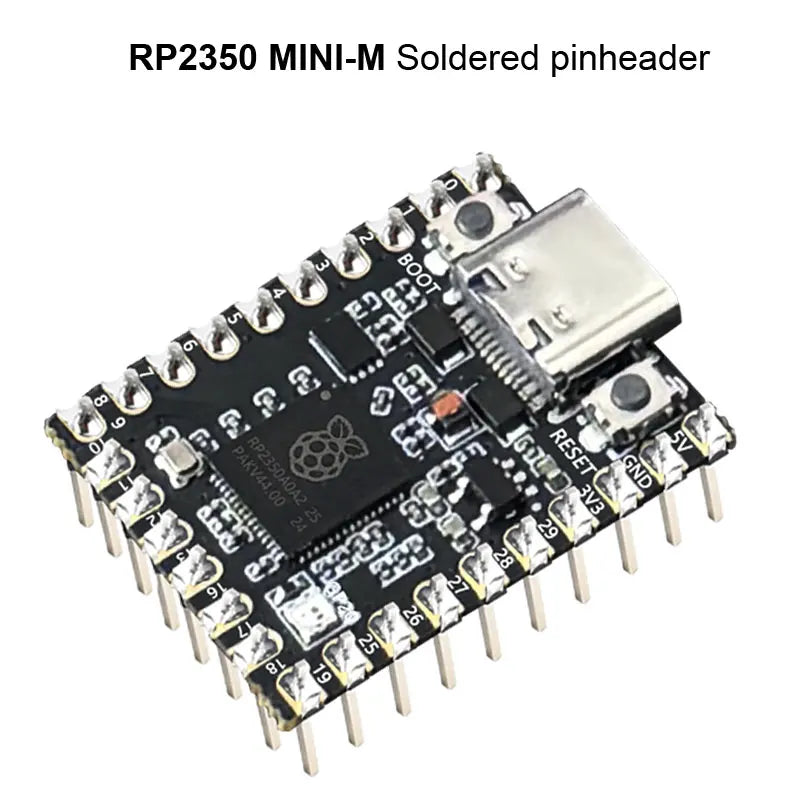

[] RP2350-Mini-M（Soldered）
