SPECIFICATIONS

AI Functions: Smart Tracking

APP: Videolink

Alarm Type: Local Alarm,FTP Photo,Email Photo

App name: Other

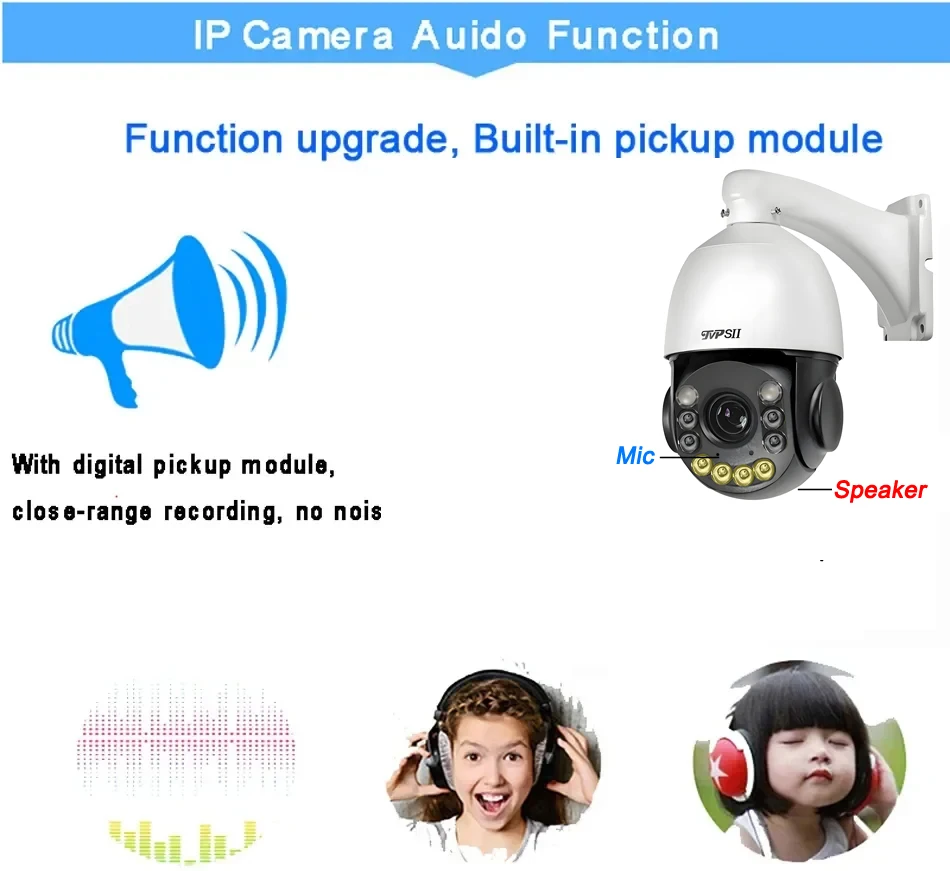

Audio Output: Two Way Audio

Auto Tracking/Cruise: Support

Auto Zoom: Suppoprt

Brand Name: TVPSii

Camera Stabilization: None

Certification: CE,FCC

Choice: yes

Color: WHITE

Color Night Vision: Yes

Connectivity: RJ45

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 150m-200m

Installation: Wall Mounted

Internal Storage: 512G

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.0001Lux

Model Number: TP-PTZ08WH-54XS

Movement Range(Pan): 0°-360°

Movement Range(Tilt): Other

Operating Temperature: -50°-60°

Optical Zoom: Other

Origin: Mainland China

Power Consumption(W): 20W-30W

Power Mode: Mains Electricity

Power Source: With Poe,Normal

Power Supply: With Poe

Power Supply(V): DC12V/POE 48V

Protocol: Hikvision,Dahua,Onvif

Rechargeable Battery: None

Rotation Speed: High Speed

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: No

TF Card: None

Video Compression Format: H.265

Viewing Angle : 360°

Warranty: two year

Zoom: 50x

Zoom type: Optical zoom

is_customized: Yes

• All Camera is Double Light Mode,Support Infrared with Warm Led,can set full color and black white night vision.

• Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.

• This Camera is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.

• Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 51GB, 256GB SD Card).

• Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise

• Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!

• GK7605 V100+1/2.8" Sony IMX335:6MP,3072px*2048px,25fps (support SD Card ,Auto Tracking)

• Mstar338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking)

• Mstar339Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,30fps (support SD Card,Auto Tracking)

• Support Auto Zoom,Auto Tracking human

• Set 92 preset postion as guard postion,call 92(auto tracking command statement)

Q:What is H.265+ Compression?

A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.

Q:There are many ommand statement in PTZ Menu.

A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......

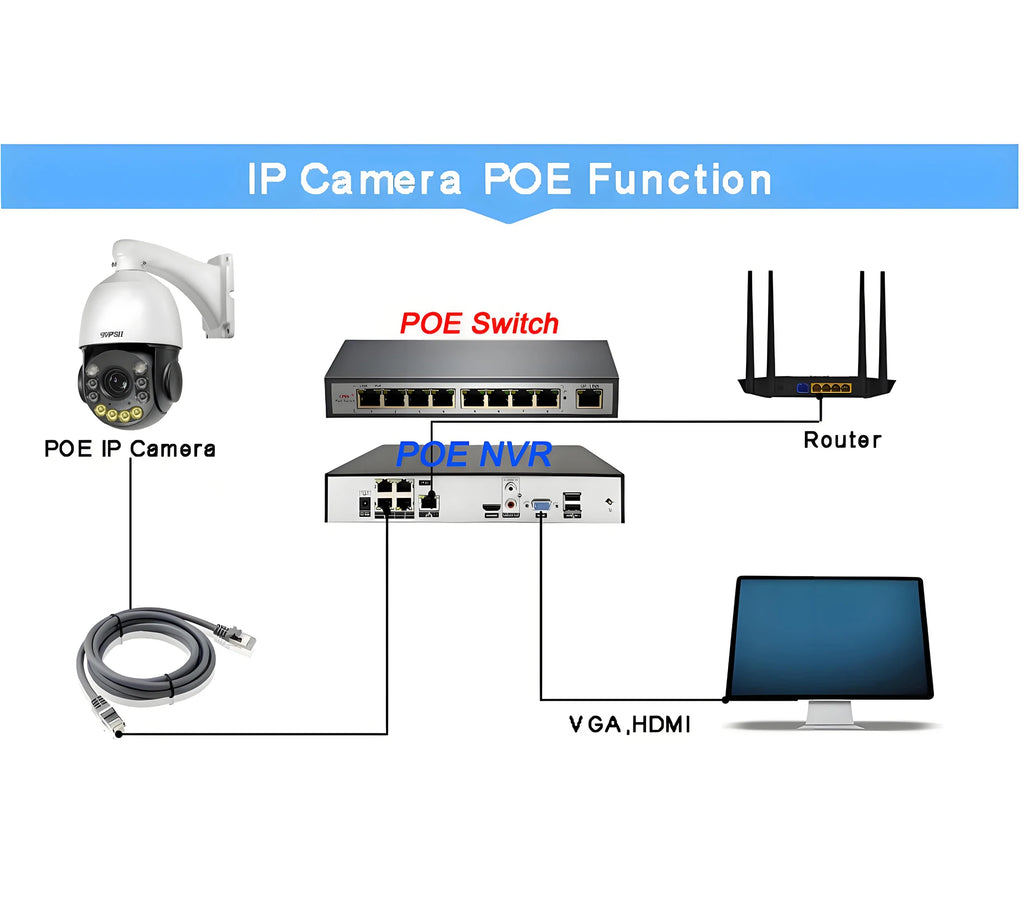

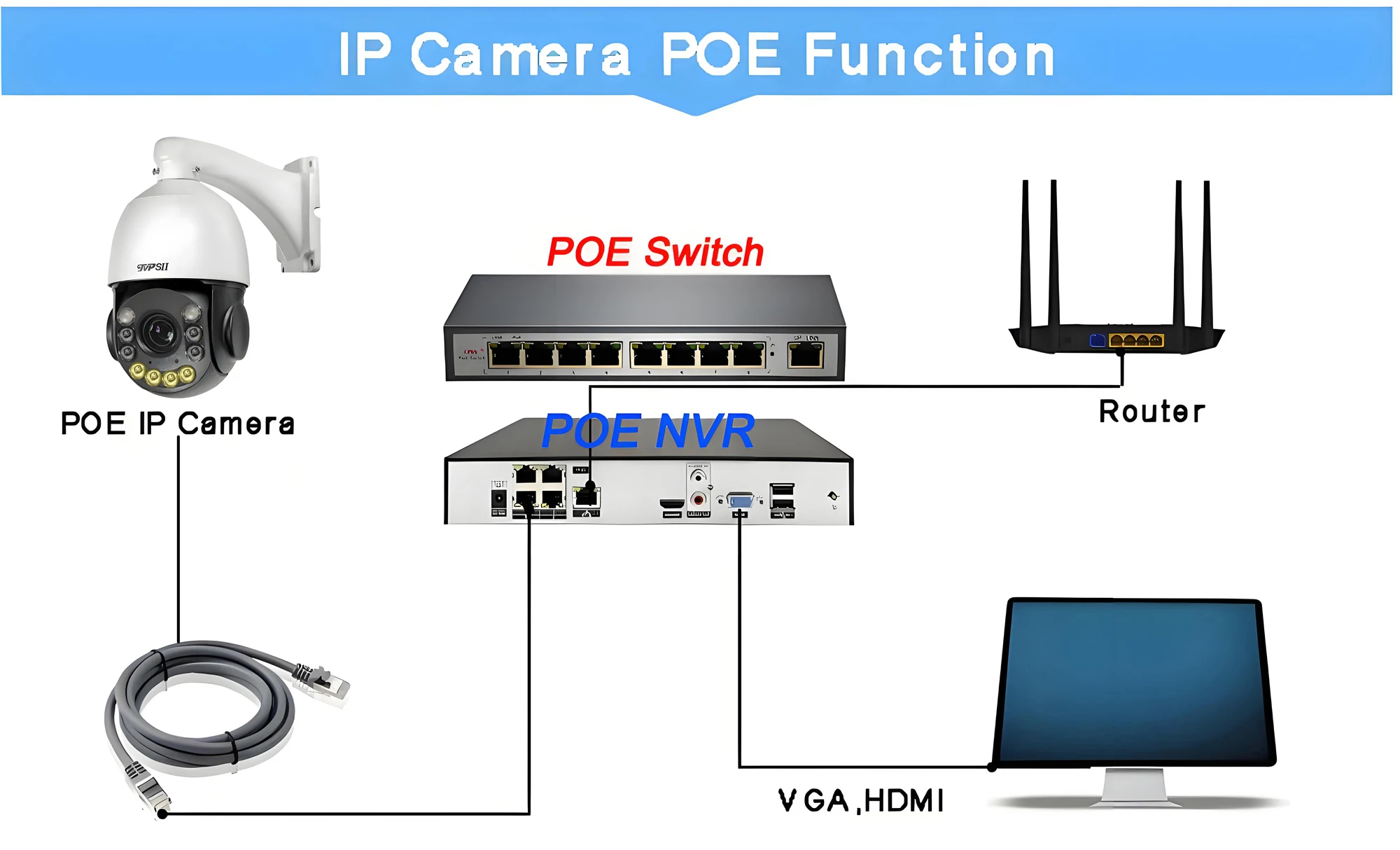

Q:What is POE function for IP Camera?

A:Only use Net cabletransmission signal and power supply,so not need use power adpater

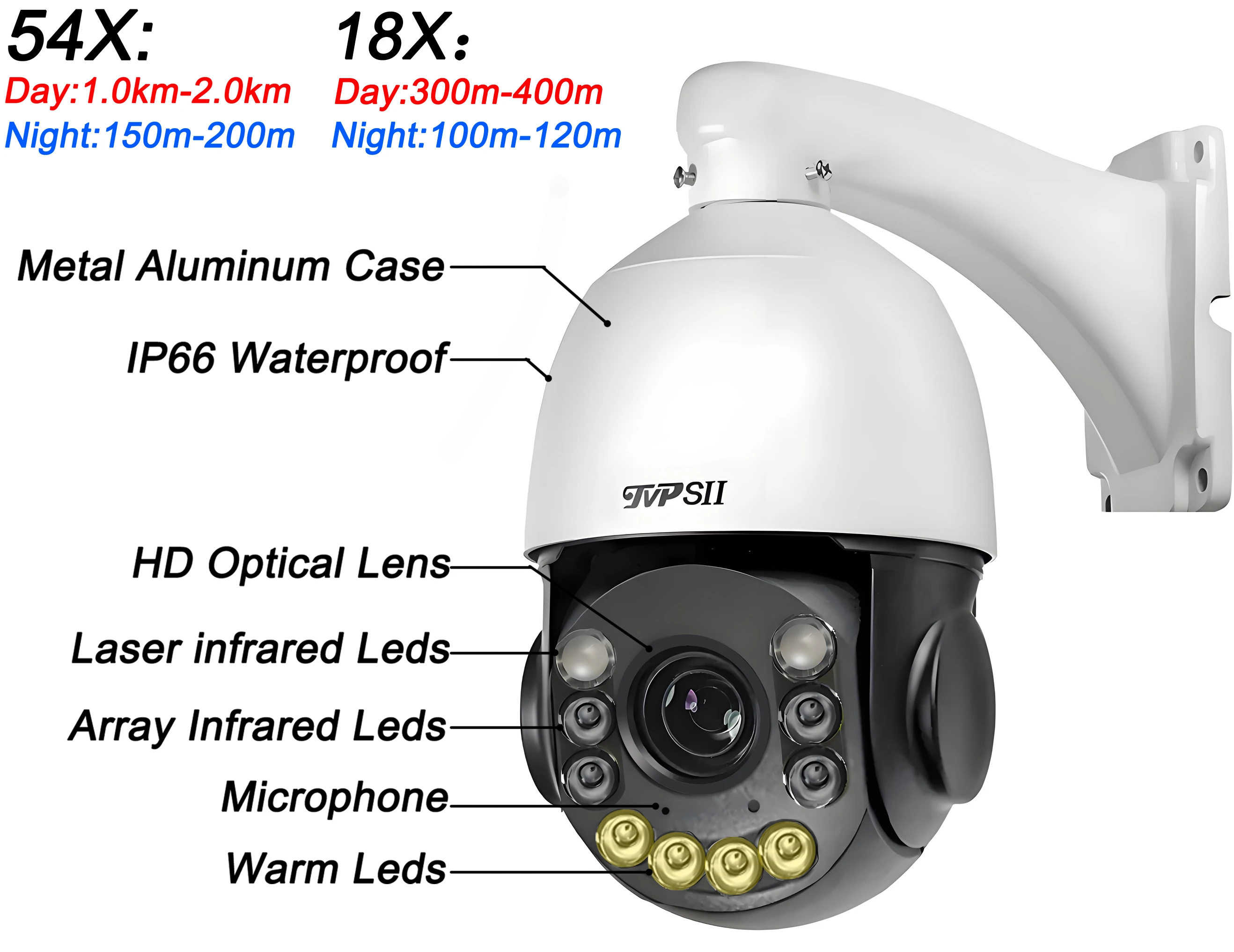

• 18X Monitoring distance(80-100m)
• 54X Monitoring distance(150-200m)

Resolution	8MP 4K	8MP 4K	6MP
system structure	Mstar339Q	Mstar338Q	GK7605
CMOS Sensor	4K 8MP 1/2.8" Sony IMX415		6MP 1/2.8" Sony IMX335
Min illumination	Low illumination 0.001Lux		Black light illumination,0.0001Lux
Video processing	H.265AI/H.265+(compatible with H.265/H.264) encoding, dual stream, AVI format
Image output	8MP 3840*2160@30fps	8MP 3840*2160@20fps	6MP 3072*2048@25fps
Shutter	1/50 (1/60) seconds to 1/10000 seconds
Infrared Led Light	2pcs laser led+4pcs infrared+4pcs Warm Led light
IR Distance	80m-100m
Conversion mode	Day and night conversion mode
Noise reduction	Support 2D/3D noise reduction
Wide dynamic	digital wide dynamics
Network Interface	1*RJ45 network interface, 10/100M adaptive
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable
Cruise settings	Support(Fixed-point cruise, cruise between two points,360° cruise,......)
auto tracking	Support
SD Card	Support(Max:512GB)
POE Function	Support
Network protocol	TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP,RTMP
Presets	255
Optical focus	54X/18X
Protocol	Hikvision,Onvif,Dahua

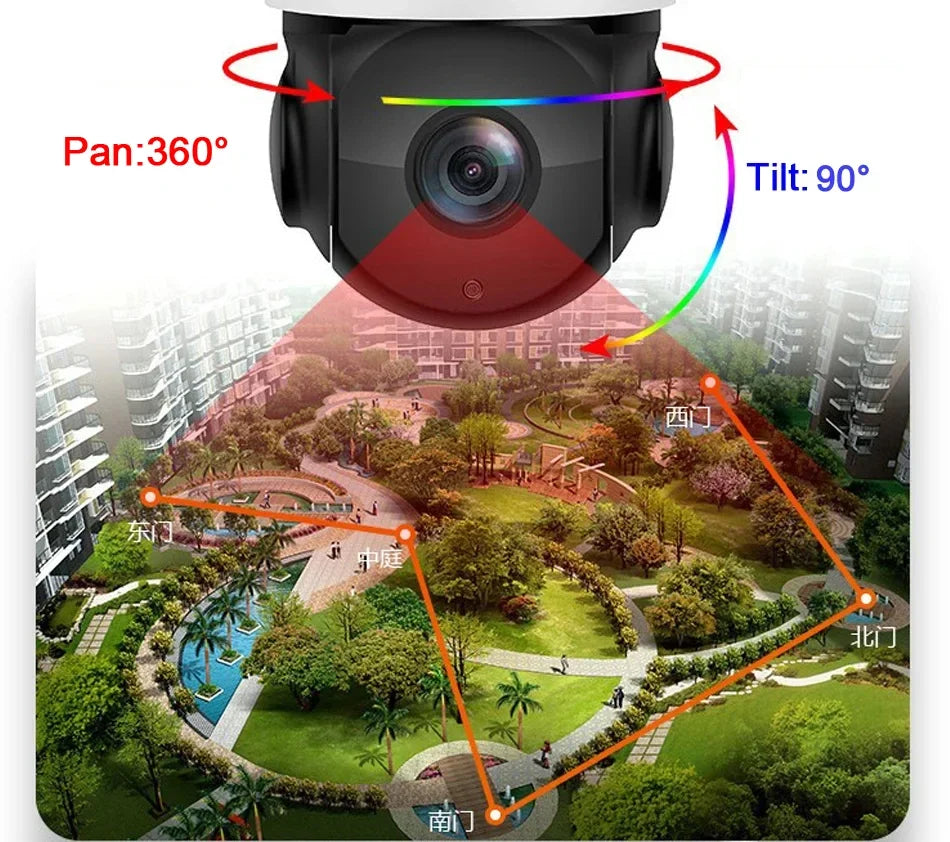

Rotation	90 degrees vertical,360° hrizontal
Water resistance	IP66
Work Temperature	-50°C ~ +60°C
Weight	1.85kg
Phone monitoring	Videolink
Power Supply	Power by POE/DC12V 2A

Friendly Reminder:

• the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.

• if choose buy poe ip camera, this camera support 12V DC and 48V POE

• we only spent two days (48 hours)  for sent parcel , have tracking number and tracking number information.

• if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer.
