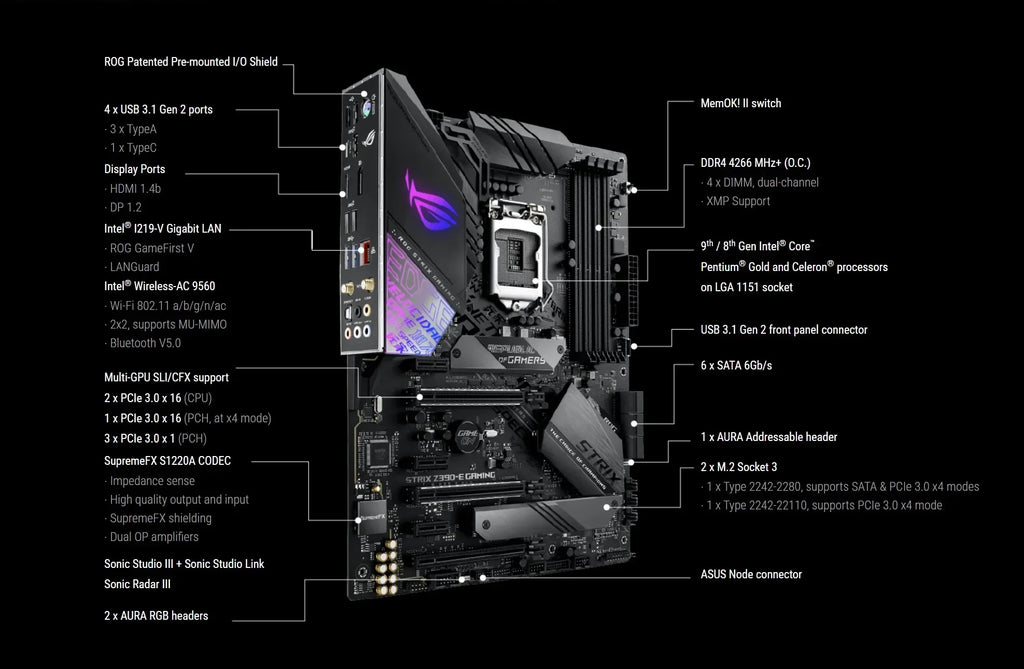

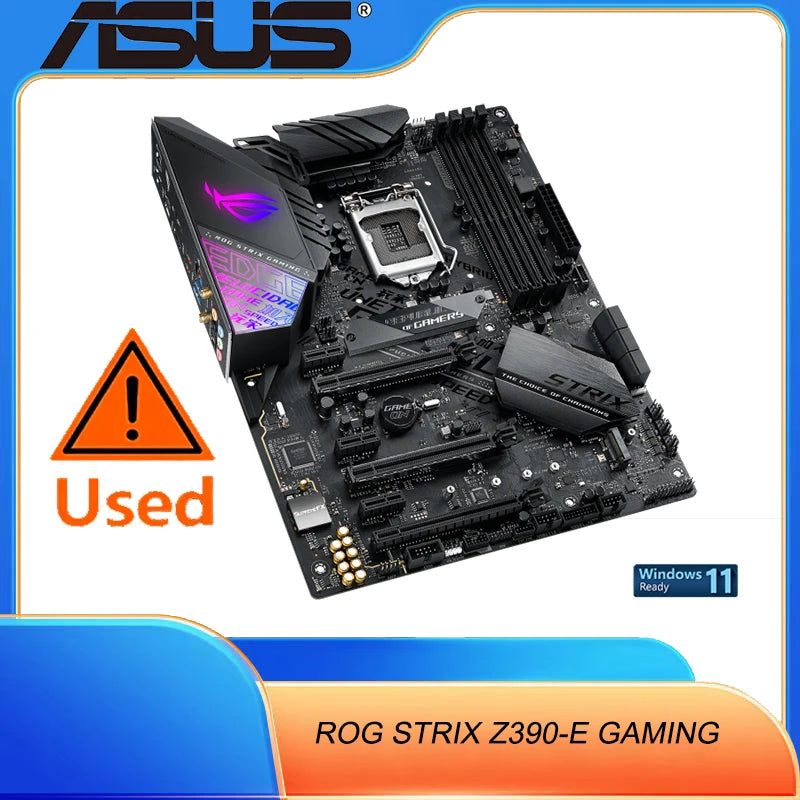

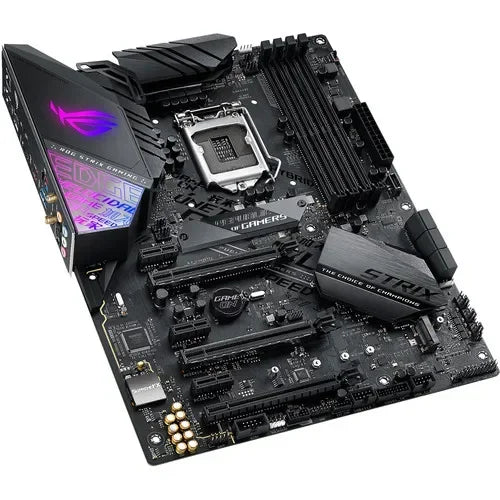

Model

BrandASUS

SeriesROG

ModelStrix Z390-E Gaming

Supported CPU

CPU Socket Type LGA 1151 (300 Series)

CPU TypeIntel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors

* Not backward compatible with older generation of LGA 1151 CPUs

* Refer to www.asus.com for CPU support list

Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*

* Intel Turbo Boost Technology 2.0 support depends on the CPU type

Chipsets

Chipset Intel Z390

Onboard Video

Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support

Multi-VGA output support: HDMI/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory

Number of Memory Slots4x288pin (DDR4)

Memory StandardDDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Maximum Memory Supported64GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x162 x PCIe 3.0/2.0 x16 (x16 or dual x8)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

PCI Express x13 x PCIe 3.0/2.0 x1

Storage Devices

SATA 6Gb/s 6 x SATA 6Gb/s

M.21 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)

* When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.

Intel Optane ReadyYes

SATA RAID0/1/5/10

Onboard Audio

Audio Chipset ROG SupremeFX S1220A High Definition Audio CODEC

Audio Channels 8 Channels

* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Onboard LAN

LAN ChipsetIntel I219-V

Max LAN Speed1Gbps

Wireless LANIntel Wireless-AC 9560

Wi-Fi 802.11 a/b/g/n/ac

Supports dual band frequency 2.4/5 GHz

Supports MU-MIMO

BluetoothBluetooth v5.0

Rear Panel Ports

Back I/O Ports1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.1 Gen 2 (3 x Type-A + 1 x USB Type-C)

2 x USB 3.1 Gen 1

2 x USB 2.0

1 x Optical S/PDIF out

5 x Audio jack(s)

1 x ASUS Wi-Fi Module

Internal I/O Connectors

Onboard USB1 x USB 3.1 Gen 2 front panel connector

1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

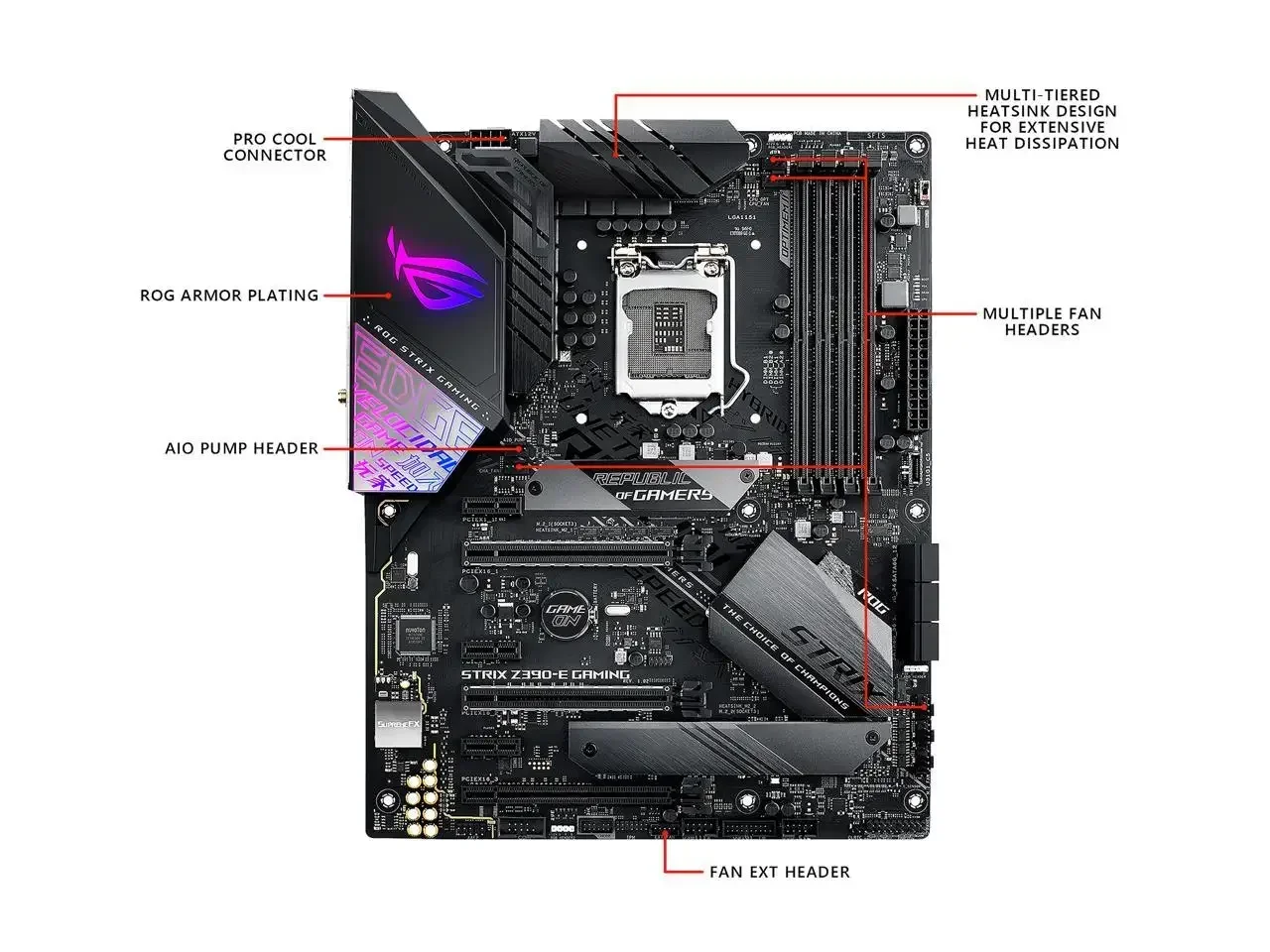

Other Connectors1 x Aura Addressable Strip Header(s)

1 x AAFP connector

2 x Aura RGB Strip Header(s)

1 x M.2_FAN connector

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

2 x Chassis Fan connector(s)

1 x W_PUMP+ connector

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x 5-pin EXT_FAN (Extension Fan) connector

1 x MemOK! II switch(es)

1 x Thermal sensor connector(s)

1 x CPU OV

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x 14-1 pin TPM connector

1 x COM port header

1 x AIO PUMP Header

Physical Spec

Form FactorATX

LED LightingRGB

Dimensions (W x L)12.0" x 9.6"

Power Pin1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

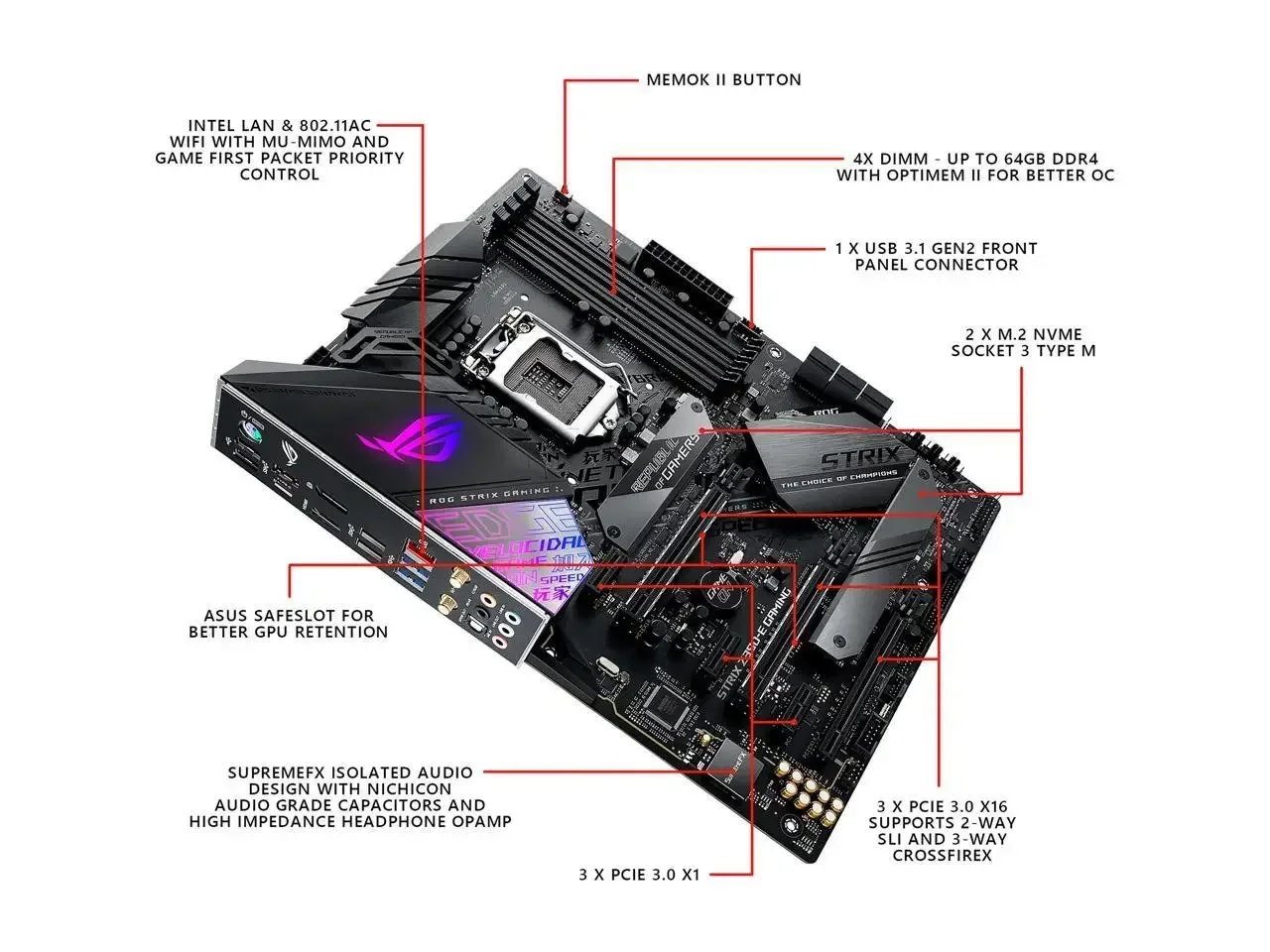

Features

FeaturesMulti-GPU Support:

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

ROG Exclusive Features:

ROG Exclusive Software

- RAMCache III

- CPU-Z

- GameFirst V

- Sonic Studio III + Sonic Studio Link

- Sonic Radar III

Special Features:

OC Design - ASUS PRO Clock Technology

- Full BCLK range for extreme overclocking performance

5-Way Optimization by Dual Intelligent Processors 5

- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App

AI Overclocking

ASUS Optimem II:

- Improved DDR4 Stability

AURA:

- Aura Lighting Control

- Aura RGB Strip Headers

- Aura Lighting Effects Synchronization with compatible ASUS ROG devices

- Aura Addressable Strip Header(s)

ASUS Exclusive Features:

- MemOK! II

- AI Suite 3

- Ai Charger

- Armoury Crate

- Pre-mounted I/O Shield

- ASUS NODE: hardware control interface

ASUS EZ DIY:

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design:

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Gaming Aesthetics:

- 3D printing friendly

- AURA-RGB Lighting

Digi+VRM

M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)

DIY Friendly Design

- Procool

- SafeSlot

- Digi+ VRM

- DRAM Overcurrent Protection

- Highly Durable components

- ESD Guards

BIOS:

1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

Manageability:

WOL, PXE

Operating System:

Windows 10 64-bit

Packaging

Package ContentsAccessories:

User's manual

4 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)

1 x CABLE TIE BLACK

1 x SLI HB BRIDGE (2-WAY-M)

1 x ROG Strix stickers

1 x Assistant Fans (40mm)

1 x screws for Assistant Fan(s)

1 x ROG Door Hanger(s)

1 x Extension Cable for RGB strips (80cm)

1 x Extension cable for Addressable LED

1 x Thermistor cable(s)
