SPECIFICATIONS

AMD Model: AMD Ryzen 5 PRO 2400GE

Application: Desktop

Brand Name: AMD

Chip Process: 14NM

Choice: yes

Cooling system: No

Default TDP / TDP: 35

GPU-built: Yes

High-concerned chemical: None

L3 Cache Capacity: 4

Number OF Therads: 8

Number of Cores: Quad-Core

Origin: Mainland China

PCIe VERSION: PCIe 3.0

Package: No

Processor Type: AMD Ryzen 5

Socket Type: AM4

Support Chipset Models: AMD B450

Support Memory Channels: 2

Support Memory Type: DDR4

Type: Quad-Core

Unlocked: Yes

Usage Scenario: others

Note:

(Used product) - (one-year warranty) (strict testing) - (sent within 48 hours)-（Unable to specify production area）

AMD Ryzen 5 PRO 2400GE specifications

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Ryzen 5 PRO
Model number ?	2400GE
CPU part number	YD240BC6M4MFB is an OEM/tray microprocessor
Frequency ?	3200 MHz
Maximum turbo frequency	3800 MHz
Package	1331-pin lidded micro-PGA package
Socket	Socket AM4
Introduction date	May 10, 2018
Architecture / Microarchitecture
Microarchitecture	Zen
Processor core ?	Raven Ridge
Manufacturing process	0.014 micron FinFET
Data width	64 bit
The number of CPU cores	4
The number of threads	8
Floating Point Unit	Integrated
Level 1 cache size ?	4 x 64 KB 4-way set associative instruction caches 4 x 32 KB 8-way set associative write-back data caches
Level 2 cache size ?	4 x 512 KB 8-way set associative caches
Level 3 cache size	4 MB 16-way set associative shared cache
Cache latency	4 - 5 (L1 data cache / Int) 7 - 8 (L1 data cache / FP) 12 (L2 cache) 35 (L3 cache)
Multiprocessing	Uniprocessor
Extensions and Technologies	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions SHA / Secure Hash Algorithm extensions AMD64 / AMD 64-bit technology ? SMT / Simultaneous MultiThreading AMD-V / AMD Virtualization technology Precision Boost
Security Features	EVP / Enhanced Virus Protection ? SMAP / Supervisor Mode Access Prevention SMEP / Secure Mode Execution Protection
Low power features	Pure Power
Integrated peripherals / components
Display controller	HDMI / Display Port
Integrated graphics	GPU Type: Radeon Vega 11 Shader cores: 704 Maximum frequency (MHz): 1250
Memory controller	Memory channels: 2 Supported memory: DDR4-2933
Other peripherals	PCI-Express 3.0 interface (8 lanes)
Electrical / Thermal parameters
Maximum operating temperature ?	95°C
Thermal Design Power ?	35 Watt
Notes on AMD Ryzen 5 PRO 2400GE
Business-class processor According to the AMD website, the processor has unlocked clock multiplier One source claims the APU has 105°C maximum operating temperature

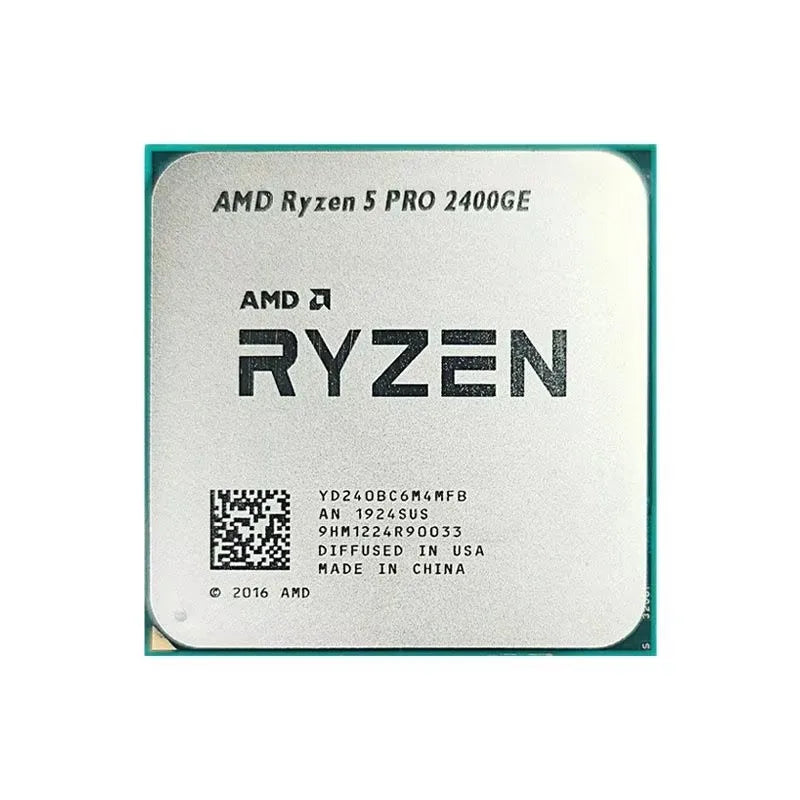

AMD Ryzen 5 PRO 2400GE R5 PRO 2400GE 3.2 GHz Quad-Core Eight-Thread 35W CPU Processor YD240BC6M4MFB Socket AM4
